CNC EDM Machine

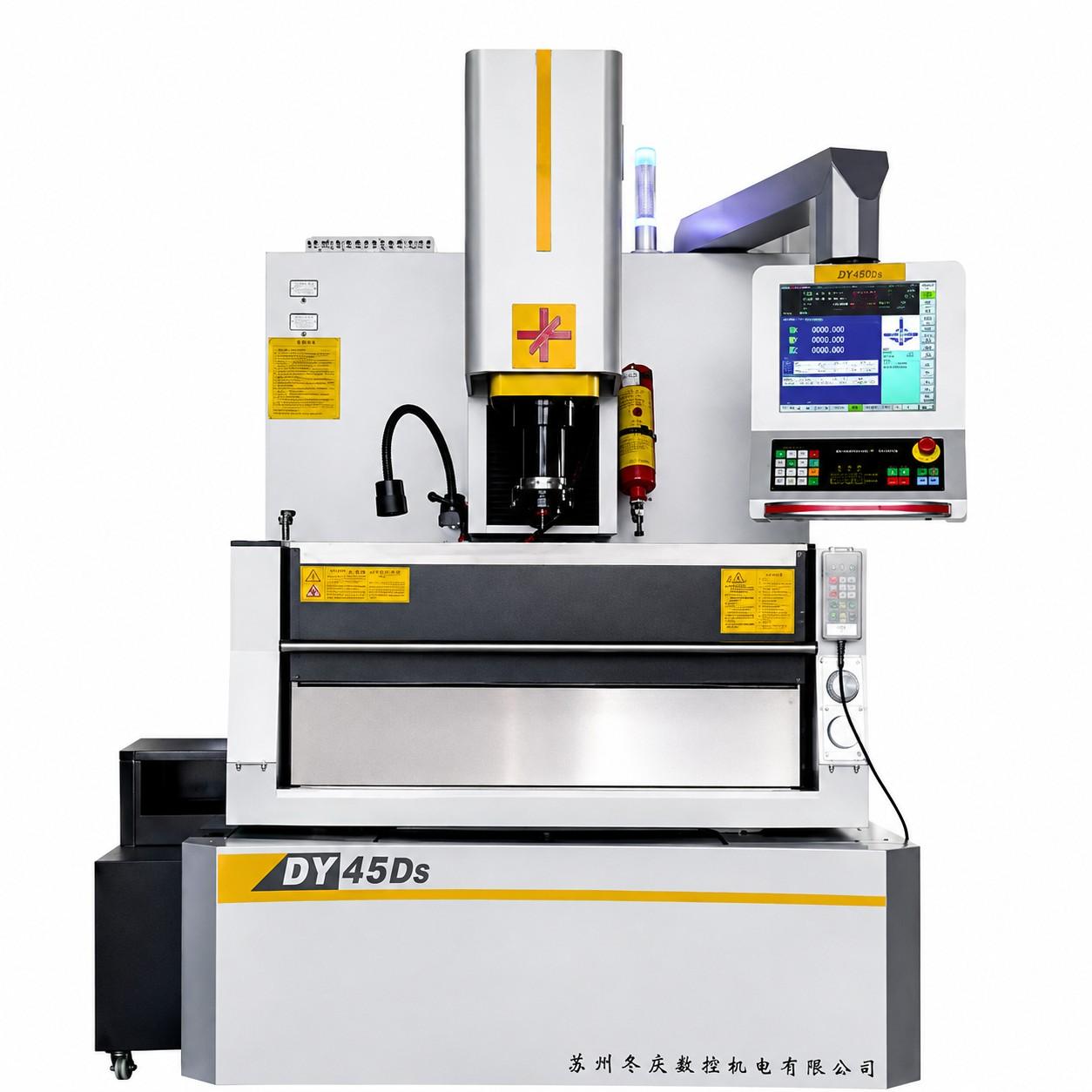

CNC450 EDM Machines
Work Table Size (L*W):
700 x 400 mm
Axis Travel (X*Y*Z):
450 x 350 x 300 mm
Liquid Tank Internal Dimensions:
1050 x 600 x 390 mm
Worktop-Spindle Min/Max:
170–470 mm
Maximum Electrode Weight:
30 KG
Maximum Workpiece Weight:
400 KG
Overall Size:
1959 x 1696 x 2280 mm
Machine Weight:
2800 KG
Cabinet Weight:
650 KG
Repeat Accuracy:
±0.003 mm (GB/T5291.1-2001)
Maximum Machining Efficiency:
≥500 mm³/min (Graphite Forging), ≥400 mm³/min (Copper
Forging)
Optimal Surface Roughness:
Ra≤0.1 μm
Minimum Electrode Loss:
≤0.1%
Each Axis Resolution:
≤0 μm
Minimum Driving Unit:
1 μm
Interpolation Type:
0, 1
Each Axis Compensation:
Three-dimensional Linear, Two-dimensional Circular
Arc
Axial Control Number:
Each axis respectively step-error compensation and
clearance compensation
CNC 550 EDM Machines
Work Table Size (L*W):
700 x 400 mm
Axis Travel (X*Y*Z):
450 x 350 x 300 mm
Liquid Tank Internal Dimensions (L×W×H):
1050 x 600 x 390 mm
Worktop-Spindle Min/Max:
170–470 mm
Maximum Electrode Weight:
30 KG
Maximum Workpiece Weight:
400 KG
Overall Size:
1959 x 1696 x 2280 mm
Machine Weight:
2800 KG
Positioning Accuracy:
≤0.005 mm (GB/T5291.1-2001)
Repeat Accuracy:
±0.003 mm (GB/T5291.1-2001)
Maximum Machining Efficiency:
≥500 mm³/min (Graphite Forging), ≥400 mm³/min (Copper
Forging)
Optimal Surface Roughness:
Ra≤0.1 μm
Minimum Electrode Loss:
≤0.1%
Each Axis Resolution:
≤0 μm
Minimum Driving Unit:
1 μm
Interpolation Type:
0, 1
Each Axis Compensation:
Three-dimensional Linear, Two-dimensional Circular
Arc
