Taiwan Close Body CNC EDM Wire Cut Machine

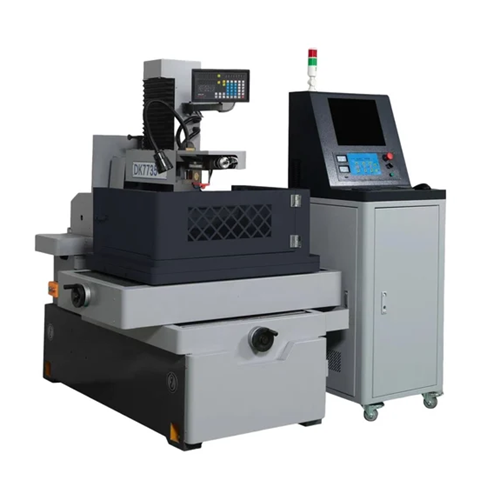

UM 25 CNC Wire Cutting Machine
Worktable Size:
630 x 430 mm
Worktable Travel:
320 x 250 mm
Max Cutting Height:
300 mm
Max Cutting Taper:
6° / 80 mm
Max Loading:
200 kg
Max Cutting Speed:
250
Cutting Accuracy:
± 0.005
Best Cutting Roughness:
1.0 μm
Water Tank Volume:
100 L
Machine Weight:
1200 kg
Machine Size:
1400 x 1010 x 1700 mm
UM 35 CNC Wire Cutting Machine
Worktable Size:
780 x 540 mm
Worktable Travel:
450 x 350 mm
Max Cutting Height:
500 mm
Max Cutting Taper:
6° / 80 mm
Max Loading:
400 kg
Max Cutting Speed:
250
Cutting Accuracy:
± 0.005
Best Cutting Roughness:
1.0 μm
Water Tank Volume:
100 L
Machine Weight:
1700 kg
Machine Size:
1900 x 1400 x 1900 mm
Get Quote
UM 45 CNC Wire Cutting Machine
Worktable Size:
880 x 580 mm
Worktable Travel:
550 x 450 mm
Max Cutting Height:
500 mm
Max Cutting Taper:
6° / 80 mm
Max Loading:
400 kg
Max Cutting Speed:
250
Cutting Accuracy:
± 0.005
Best Cutting Roughness:
1.0 μm
Water Tank Volume:
100 L
Machine Weight:
1900 kg
Machine Size:
2000 x 1600 x 2100 mm
UM 50 CNC Wire Cutting Machine
Worktable Size:
1000 x 650 mm
Worktable Travel:
630 x 500 mm
Max Cutting Height:
700 mm
Optional Cutting Height:
1000 mm
Max Cutting Taper:
6° / 80 mm
Optional Taper:
±30° / ±45°
Max Loading:
600 kg
Max Cutting Speed:
250
Cutting Accuracy:
0.015
Best Cutting Roughness:
1.0 μm
Water Tank Volume:
100 L
Machine Weight:
2400 kg
Machine Size:
2200 x 1600 x 2100 mm
UM 63 CNC Wire Cutting Machine
Worktable Size:
1150 x 750 mm
Worktable Travel:
800 x 630 mm
Max Cutting Height:
700 mm
Optional Cutting Height:
1000 mm
Max Cutting Taper:
6° / 80 mm
Optional Taper:
±30° / ±45°
Max Loading:
800 kg
Max Cutting Speed:
250
Cutting Accuracy:
0.015
Best Cutting Roughness:
1.0 μm
Water Tank Volume:
100 L
Machine Weight:
3000 kg
Machine Size:
2300 x 1900 x 2100 mm
UM 80 CNC Wire Cutting Machine
Worktable Size:
1150 x 750 mm
Worktable Travel:
1000 x 800 mm
Max Cutting Height:
700 mm
Optional Cutting Height:
1000 mm
Max Cutting Taper:
6° / 80 mm
Optional Taper:
±30° / ±45°
Max Loading:
800 kg
Max Cutting Speed:
250
Cutting Accuracy:
0.015
Best Cutting Roughness:
1.0 μm
Water Tank Volume:
100 L
Machine Weight:
3000 kg
Machine Size:
2300 x 1900 x 2100 mm
UM 100 CNC Wire Cutting Machine
Please contact us for detailed technical specifications of the UNIQUE UM 100 CNC Wire Cut EDM Machine.
