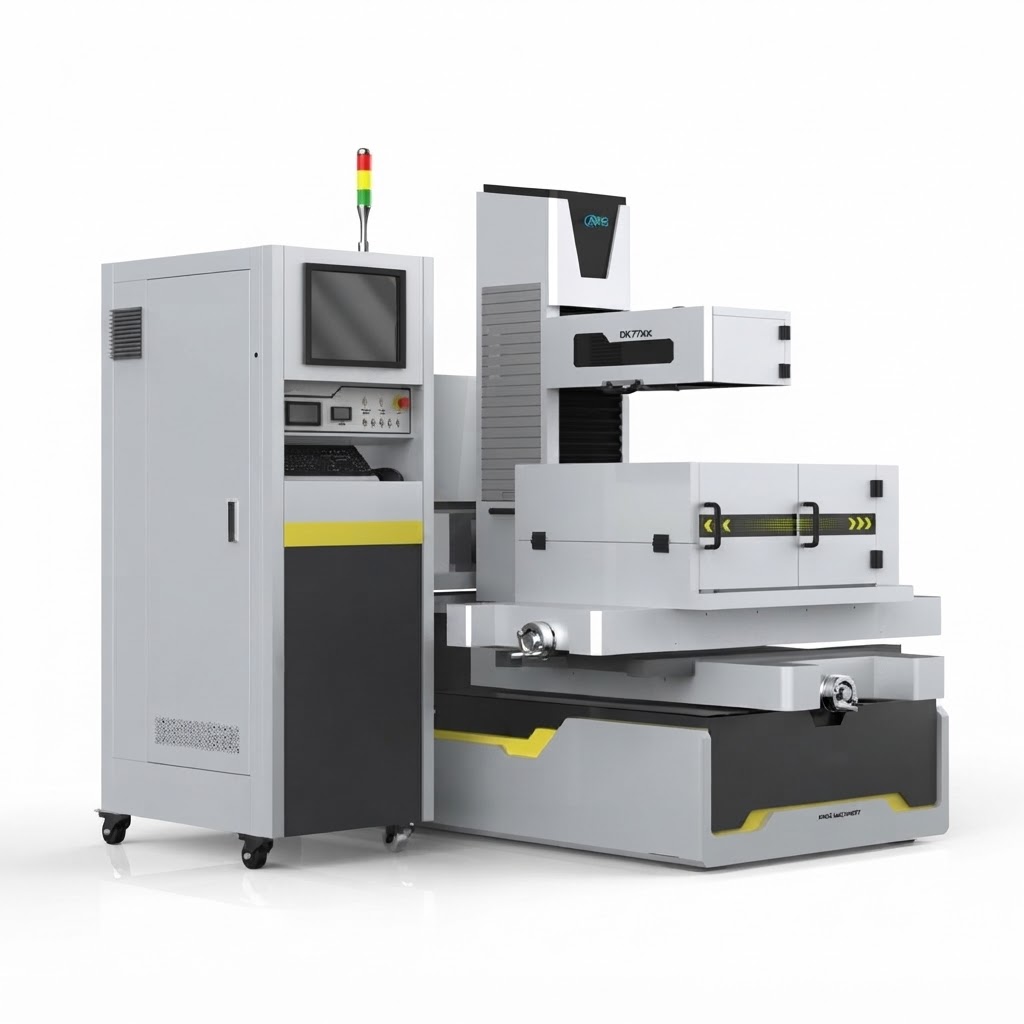

High precision CNC Wire Cut EDM Machine Manufacturers in Coimbatore by Unique Machineries Pvt. Ltd.
whatsapp-now
enquire-now

Welcome to Unique Machineries Pvt. Ltd., supporting precision manufacturing as CNC Wire Cut EDM Machine Manufacturers in Coimbatore. We provide machining solutions for engineering businesses that need accurate profiles, intricate cuts, and dependable tooling performance.

With 15+ years of industry experience, we offer CNC Wire Cut EDM machinery designed to support repeatable cutting results, consistent operation, and efficient production planning. Our focus remains on machine quality, competitive pricing, and practical technical assistance.

From tool rooms and component workshops to die and mould production units, we help manufacturers address detailed machining tasks with greater consistency and confidence.

What Is a CNC Wire Cut EDM Machine?

A CNC Wire Cut Electric Discharge Machining Machine is a precision machining system that uses controlled electrical sparks between a fine wire electrode and a conductive workpiece to remove material. It is widely used for intricate profiles, dies, punches, and hardened components where conventional cutting may be difficult.

How Does a CNC Wire Cut EDM Machine Work?

We use controlled electrical discharges, precision CNC movements, dielectric water circulation, and continuous wire feeding to achieve accurate and repeatable material removal without direct tool contact.

  • Non-Contact Precision Cutting: Wire EDM supports engineering applications in Coimbatore by cutting electrically conductive materials without conventional tool-to-workpiece contact.
  • Fine-Grained Spark Removal: Electrical pulses erode small sections of the workpiece, enabling complex profiles and detailed shapes to be machined.
  • Dielectric Water Circulation: Deionized water removes debris and helps manage heat around the cutting area for stable operation.
  • Digitally Controlled Cutting: CNC programming guides the wire through specified coordinates to produce accurate contours, slots, and tooling profiles.
  • Continuous Wire Movement: A moving electrode supplies fresh wire to the machining area as the programmed cut progresses.
  • Precision Component Results: Consistent wire guidance and regulated erosion help achieve repeatable dimensions for dies, moulds, and engineering components.

Types of CNC Wire Cut EDM Machine

As CNC Wire Cut EDM Machine Suppliers in Coimbatore, we provide different machine configurations designed to address varying requirements for cutting speed, precision, taper control, surface finish, and complex profile machining.

  • High-Speed Wire Cut EDM MachineUsing a continuously reciprocating molybdenum wire, this CNC Wire Cut EDM Machine delivers efficient and economical cutting of conductive materials. It is suitable for general tooling, die making, and production work where dependable performance and controlled operating costs are important.
  • Medium-Speed Wire Cut EDM MachineDesigned with controlled wire movement and optimized electrical discharge parameters, CNC Wire Cut EDM Machinery provides stable and consistent machining results. Multiple cutting passes can improve dimensional accuracy and surface quality for a wide range of precision components.
  • Low-Speed Wire Cut EDM MachineWith continuously fed brass wire, this Wire Cut Machine for Precision Parts achieves fine profiles, close tolerances, and high-quality surface finishes. It is well suited for demanding tooling applications where exceptional accuracy and detailed machining are required.
  • 2-Axis CNC Wire Cut EDM MachineControlling the primary X and Y movements, a CNC Electrical Discharge Machine produces accurate two-dimensional profiles with consistent cutting results. It works effectively for dies, punches, slots, plates, and components with standard profile geometries.
  • 4-Axis CNC Wire Cut EDM MachineBy adding U and V wire-guide movements to X and Y-axis control, a Computer Numerical Control Wire Cut EDM Machine offers greater machining flexibility. This configuration is suitable for tapered profiles, complex contours, and components requiring accurate upper and lower profile coordination.
  • High-Taper Wire Cut EDM MachineFeaturing controlled wire angling, a high-performance Wire Cut EDM Machine can produce accurate inclined and tapered cuts on suitable conductive workpieces. It is ideal for precision dies, mould components, and specialized tooling that require complex angular geometries.

Our range also includes the Automatic CNC Wire Cut EDM Machine for applications requiring programmable machining and consistent production performance. For specialized requirements, we provide Wire EDM Machine Solutions suitable for different tooling, engineering, and precision component applications.

Technical Specifications of CNC Wire Cut EDM Machine

As CNC Wire Cut EDM Machine Suppliers in Coimbatore, we offer machines with carefully selected technical parameters to support accurate cutting, reliable performance, multi-axis machining, and diverse industrial applications.

Specification Details
Machine Type CNC Wire Cut EDM Machine
CNC Control Industrial CNC control with multi-axis interpolation
Axis Configuration X, Y, Z with U & V axes for taper cutting
X-Axis Travel 300–500 mm, model dependent
Y-Axis Travel 400–630 mm, model dependent
Z-Axis Travel 300–400 mm, motorized
U & V Travel ±30 to ±50 mm, depending on model
Worktable Size Approx. 400 × 600 mm to 800 × 540 mm
Maximum Workpiece Weight 400–1,000 kg, model dependent
Wire Diameter 0.10–0.30 mm
Wire Type Brass or molybdenum wire, according to machine type
Wire Feed Speed Model and wire configuration dependent
Maximum Cutting Speed Approx. 120–250 mm²/min
Machining Accuracy Up to approximately ±0.003–0.005 mm
Surface Finish Up to approximately Ra 0.5–1.25 µm
Taper Cutting Approximately ±15° to ±30°, model dependent
Drive System AC servo or precision stepper drive
Motion System Precision ball screws and linear guideways
Dielectric System Deionized water circulation and filtration
Control Features CNC programming, interpolation and programmable cutting functions
Power Supply 3-Phase, 415 V, 50 Hz
Automation Automatic wire feeding and programmable machining
Applications Dies, moulds, punches, precision components, tool rooms and job work

Key Features of CNC Wire Cut EDM Machine

As CNC Wire Cut EDM Machine Dealers in Coimbatore, we incorporate advanced control systems, precision motion components, efficient wire feeding, and stable dielectric management for dependable machining performance.

  • High-Precision Cutting: Our high-performance Wire Cut EDM Machine delivers accurate profiles, fine details, and consistent dimensional results for demanding machining applications.
  • Advanced CNC Control: The integrated computer numerical control (CNC) system provides precise wire movement and programmable machining for repeatable production.
  • Multi-Axis Machining: X, Y, Z, U, and V axis movements support complex profiles, tapered cuts, and intricate geometries with greater machining flexibility.
  • Efficient Wire Cutting: The continuous wire-cutting process enables accurate material removal with minimal mechanical stress on the workpiece.
  • Stable Dielectric System: Controlled deionized water circulation cools the cutting zone and removes machining debris for reliable Wire-cut Electrical Discharge Machines performance.

Benefits of CNC Wire Cut EDM Machine

As CNC Wire Cut EDM Machine Exporters in Coimbatore, we deliver solutions that combine dimensional accuracy, complex profile machining, low mechanical stress, operational efficiency, and consistent production performance.

  • Exceptional Accuracy: Precise spark control and CNC movement make it suitable for high-precision components requiring close dimensional tolerances.
  • Complex Profile Capability: The wire-cut EDM (Electrical Discharge Machining) machine can produce intricate contours, narrow slots, sharp corners, and tapered profiles.
  • Low Mechanical Stress: Since cutting takes place through controlled electrical discharge rather than direct tool contact, delicate and hardened conductive materials can be machined effectively.
  • Improved Productivity: Automated wire movement, programmable operations, and repeatable machining help reduce manual intervention and improve production efficiency.
  • Cost-Effective Machining: Reliable performance, reduced mechanical tooling requirements, and consistent results provide long-term value for industrial manufacturing.

Applications of CNC Wire Cut EDM Machine

As CNC Wire Cut EDM Machine Manufacturers in Coimbatore, we serve diverse industrial requirements by providing precision machining solutions for tooling, automotive, aerospace, medical, electronics, defense, and specialized manufacturing applications.

  • Mold & Die Industry: Used for producing accurate mould inserts, die components, punches, cavities, and complex tooling profiles.
  • Automobile Industry: Suitable for manufacturing precision dies, tooling components, gears, and specialized conductive parts used in automotive production.
  • Aerospace Industry: Supports the production of intricate and close-tolerance components where precision and repeatability are essential.
  • Medical Industry: Used for manufacturing precision tooling and conductive components requiring detailed profiles and controlled dimensions.
  • Electronics Industry: Helps produce fine slots, miniature components, precision connectors, and tooling used in electronic manufacturing.
  • Tool Room & Job Work: Provides flexible machining capability for custom dies, prototypes, repair components, and specialized precision job work.
  • Defense Industry: Suitable for manufacturing complex conductive components and precision tooling where reliable dimensional accuracy is required.
  • Jewelry & Watch Industry: Supports the production of intricate profiles, precision tooling, and small conductive components requiring fine cutting accuracy.

Explore our Locations We Serve across India to find advanced CNC Wire Cut EDM Machines, EDM Drilling Machines, DRO Milling Machines, Turret Milling Machines, Broken Tap Removers, and Servo CNC EDM Solutions. Discover your nearest service location and connect with our team today!

Why Choose Us?

  • Quality You Can Rely On: We provide precision-focused CNC Wire Cut EDM Machinery designed for accurate cutting, stable performance, and dependable long-term operation.
  • Competitive Pricing: We offer cost-effective EDM solutions that balance machine quality; advanced capabilities, productivity, and overall investment value, including CNC Wire Cut EDM Machine at best price options for different industrial requirements.
  • Complete Customer Support: We assist our customers with machine selection, installation, technical guidance, training, and after-sales service for smooth and reliable operation.

Choose Unique Machineries Pvt. Ltd. is leading CNC Wire Cut EDM Machine Manufacturers in Coimbatore. We provide reliable CNC and EDM machining solutions focused on accuracy, productivity, quality, and long-term value. Our CNC Wire Cut EDM Machine range is suitable for precision tooling, dies, moulds, engineering components, and diverse industrial applications. With competitive pricing, technical expertise, installation assistance, and after-sales support, we help manufacturers choose dependable machining solutions for consistent production performance. For more details, contact us.
