EDM Drilling Machine

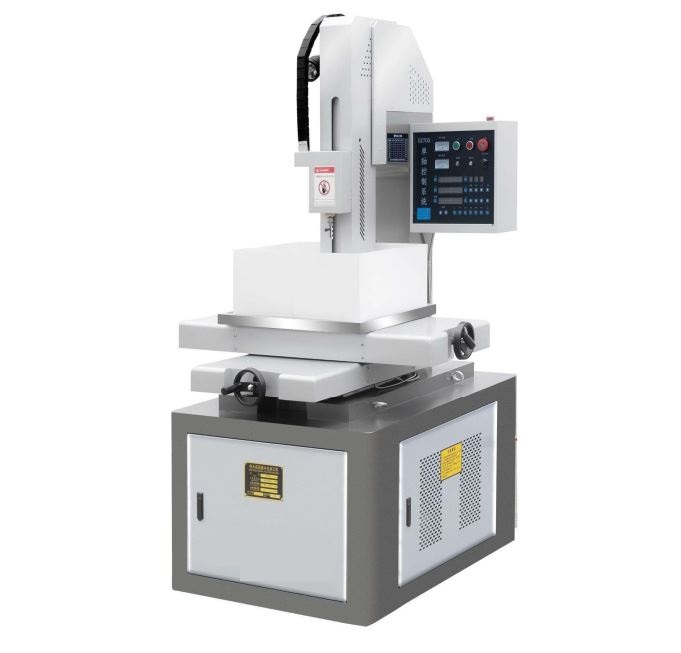

ZNC EDM Drilling Machine
Model:
DD703
Worktable Size:
330 x 480 mm
Worktable Travel:
300 x 400 mm
Spindle Head Stroke:
380 mm
Servo Travel:
370 mm
Electrode Diameter:
0.3–3.0 mm
Maximum Machining Speed:
40 mm/min
Maximum Aspect Ratio:
300:1
Working Fluid:
Running Water
Working Pressure:
7 MPa
Maximum Processing Current:
30 A
Maximum Power Consumption:
3 KVA
Control Mode:
Z-Axis Automatic
Digital Display Mode:
Two-Axis Digital Display; Optional Three-Axis Digital
Display
CNC EDM Drilling Machine
Electrode Servo Stroke:
360 mm
Table Size:
470 x 710 mm
X/Y/Z Travel:
350 x 450 x 250 mm
Machine Dimensions:
1250 x 1400 x 1950 mm
Maximum Perforation Thickness:
300 mm
Maximum Bearing Weight:
200 KG
Maximum Perforation Speed:
30–60 mm/min (Depending on Material)
Positioning Accuracy:
≤±0.02 mm/100 mm
Minimum Workbench Movement:
0.001 mm
Perforation Diameter:
Ø0.15–Ø3.0 mm
Ø0.15 mm Bore Machining Thickness:
8 mm
Peak Processing Current:
6 A (Adjustable Range: 1–30 A)
Working Voltage:
110 V
Pulse Width:
0–9 μs (9-Level Adjustable)
Pulse Interval:
Continuously Adjustable, 1:1–1:8
Power Supply:
380 VAC ±5%, 50 Hz
Machine Power:
≤3 KVA
Total Machine Weight:
900 KG
