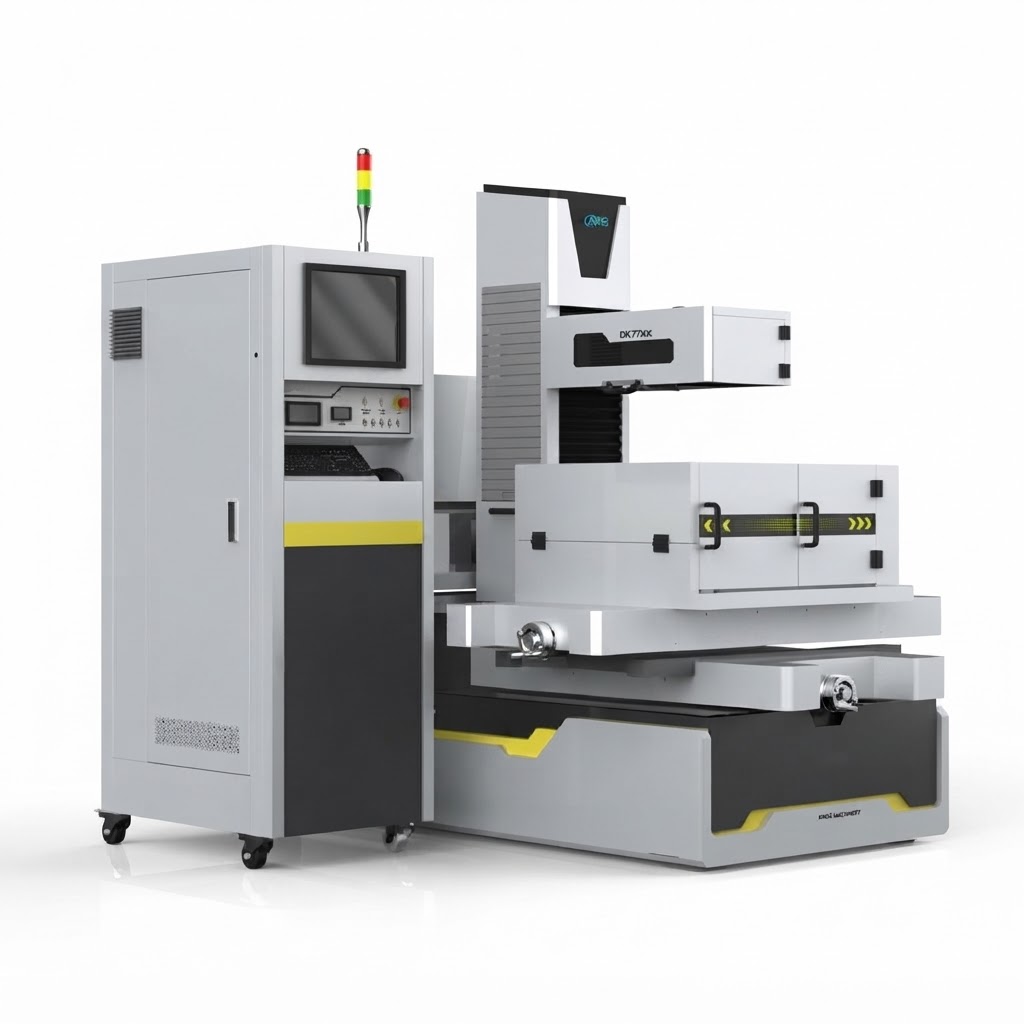

Panasonic Servo EDM Machine
Panasonic Servo EDM Machine Manufacturers in Pune
Unique Machineries Pvt. Ltd. is one of the trusted Panasonic Servo EDM Machine Manufacturers, Suppliers, Dealers and Exporters in Pune. We offer dependable CNC and EDM machining solutions developed for industries where precision and consistent performance is essential.
Our Panasonic Servo EDM Machine solutions integrate precise motion control, robust machine construction, and efficient machining capabilities to address demanding production applications. We aim to provide an effective combination of quality, performance, and competitive pricing, enabling manufacturers to enhance productivity while maintaining required machining accuracy.
From helping customers select suitable machines and supporting installation to offering technical assistance and after-sales service, we maintain a practical approach to every machining requirement. Our knowledge of precision engineering allows us to support manufacturers with dependable solutions for modern production environments. Panasonic Servo Motor EDM, Wire EDM Machine solutions are suitable for industries seeking controlled electrical discharge machining, accurate movement, and repeatable cutting performance.
What Is a Panasonic Servo EDM Machine and Where Is It Used?
A Panasonic Servo Edm Machine is a CNC-based electrical discharge machining system that employs servo-controlled movement to achieve precise cutting operations. It is designed for machining electrically conductive and difficult-to-cut materials while producing detailed profiles and geometries that may be challenging to manufacture through traditional cutting techniques.
This technology is widely applicable in Tool Room operations, Die Industry applications, Mold Industry requirements, automotive manufacturing, aerospace machining, medical component production, and precision engineering. It is particularly beneficial where controlled cutting, dimensional consistency, intricate profiles, and dependable machining accuracy are important.
How Does a Panasonic Servo EDM Machine Work?
A Panasonic Servo EDM Machine performs machining through controlled electrical discharges combined with accurately regulated servo movement. The process uses CNC control, servo motors, electrode wire, and dielectric flushing to achieve repeatable and controlled material removal. The primary operating stages include:
- CNC Program Preparation: Component dimensions, machining geometry, cutting paths, and suitable operating parameters are programmed into the CNC control system to enable automated and accurate machining.
- Workpiece Positioning: The electrically conductive workpiece is firmly secured on the machine table and accurately aligned so that the cutting operation remains stable throughout the machining process.
- Servo-Controlled Wire Movement: The EDM wire continuously follows the programmed contour while Panasonic AC Servo Motors provide controlled and responsive movement across the machine axes.
- Electrical Discharge Generation: Precisely regulated electrical pulses generate microscopic sparks between the wire electrode and conductive workpiece, removing material without conventional physical cutting contact.
- Precision Material Removal: Individual electrical discharges remove very small quantities of material, allowing the system to generate detailed contours, narrow openings, sharp corners, and complicated component profiles.
- Servo Feedback Control: Servo drives monitor and regulate axis movement and positioning, contributing to the accuracy and repeatability expected from a Panasonic Servo Motor CNC Electrical Discharge Wire Cut EDM Machine.
- Dielectric Flushing: Dielectric fluid is circulated through the cutting area to cool the machining zone and carry away eroded particles, supporting stable and efficient EDM operation.
- Finishing and Final Cutting: Additional finishing passes may be performed to achieve improved dimensional accuracy and surface quality, making the equipment suitable for dies, moulds, tooling, and other precision-oriented components.
Overall, the combination of CNC automation, high-precision Panasonic AC servo motors, regulated electrical discharge, and controlled wire travel enables manufacturers to achieve dependable and repeatable wire EDM machining results.
Types of Panasonic Servo EDM Machine
As Panasonic Servo EDM Machine Manufacturers, Suppliers, Dealers and Exporters in Pune, we provide different servo-controlled EDM configurations designed to deliver accurate movement, stable machining, and efficient production of complex conductive components.
- CNC Wire-Cut EDM MachineA Panasonic Servo Motor CNC Electrical Discharge Wire Cut EDM Machine operates with servo-controlled X, Y, U, and V axes to achieve accurate profile cutting. It is appropriate for manufacturing dies, moulds, precision tooling, and complicated components.
- ZNC / CNC Die-Sinker EDM MachineThis type of EDM machine incorporates Panasonic servo technology for controlled Z-axis travel, accurate depth positioning, and consistent electrode movement. It is suitable for cavity machining requirements within the Die Industry and Mold Industry.
- CNC Small-Hole Drilling EDM MachineA servo-operated small-hole EDM machine provides controlled electrode feeding for producing fine and deep holes. It can be used for Aerospace Components, tooling applications, and precision parts where accurate hole dimensions and controlled geometry are required.
- Fast-Speed / Medium-Speed Wire-Cut EDMThese machines utilize servo-driven axes to maintain smooth wire travel and accurate contour cutting during production operations. A Panasonic Servo Motor Drive High Precision Brass Wire configuration can support productive machining of conductive materials with repeatable cutting performance.
- High-Precision CNC Wire-Cut EDM SystemA high-performance AC servo CNC wire-cut EDM system uses servo-controlled axes to maintain precise and smooth wire movement while cutting complicated profiles. Such systems are suitable for precision dies, moulds, tooling, and components requiring stable dimensions and improved surface quality.
Technical Specifications of Panasonic Servo EDM Machine
As Panasonic Servo EDM Machine Suppliers, Manufacturers, Dealers and Exporters in Pune, we supply machines with technical configurations selected to address industrial requirements related to precision, productivity, stability, and machining performance.
| Specification | Typical Details |
|---|---|
| Machine Type | CNC Wire-Cut EDM |
| Servo System | Panasonic AC Servo Motors |
| Cutting Speed | >300 mm²/min |
| Machining Accuracy | 0.001–0.005 mm |
| Surface Finish | Ra ≤ 0.5–2.5 μm |
| Wire Diameter | 0.10–0.20 mm |
| Axis Control | 4-Axis / 6-Axis Options |
| Servo Feedback | Closed-Loop / Semi-Closed Loop |
| Maximum Taper | ±6° / 80 mm; higher options available |
| Programming | CNC, G-Code & CAD Support |
| Machine Structure | High-Rigidity C-Type Structure |
| Guide System | Precision Linear Guides & Ball Screws |
| Table Load | Approx. 400–500 kg |
| Power Supply | 3-Phase 380 V / Customizable |
| Typical Applications | Dies, Moulds, Tooling & Precision Components |
Key Features of Panasonic Servo EDM Machine
As Panasonic Servo EDM Machine Dealers, Suppliers, Manufacturers and Exporters in Pune, we offer equipment incorporating servo control, CNC automation, rigid structures, and accurate motion mechanisms for dependable EDM machining performance.
- High-Precision Servo Control: High-precision Panasonic AC servo motor drivers help provide responsive and controlled axis movement, supporting accurate and repeatable wire EDM operations.
- Efficient Wire Cutting: The CNC wire-cutting arrangement enables accurate machining of complicated profiles, dies, moulds, tooling components, and detailed industrial parts.
- Advanced CNC Operation: CNC programming provides controlled cutting paths and repeatable machining cycles while reducing the requirement for continuous manual intervention.
- Stable Machining Performance: High-performance AC servo CNC wire-cutting EDM systems are designed to maintain controlled movement and stable operation during demanding machining processes.
- Precision-Oriented Construction: Rigid machine structures, precision guideways, ball screws, and servo-controlled axes work together to support dimensional stability and machining accuracy.
- Integrated Servo Technology: High-end CNC electrical discharge and molybdenum wire-cut EDM machines integrated with Panasonic servo motor technologies can provide controlled machining performance for specialized production requirements.
- Efficient Servo Characteristics: Panasonic AC servo motors achieve high speed, large torque, compactness and light weight. These characteristics make the servo system suitable for applications requiring responsive and accurate machine movement.
Benefits of Panasonic Servo EDM Machine
As Panasonic Servo EDM Machine Exporters, Dealers, Suppliers and Manufacturers in Pune, we supply solutions focused on accurate machining, repeatable production, efficient operation, and dependable performance across a variety of EDM applications.
- Improved Machining Accuracy: Servo-regulated axis movement supports accurate positioning and helps maintain consistent dimensions when producing precision EDM profiles.
- Capability for Complex Profiles: EDM technology allows manufacturers to create intricate contours, narrow slots, sharp corners, and detailed geometries that can be difficult to obtain through conventional machining methods.
- Consistent Production Output: CNC automation combined with servo feedback helps produce repeatable results across components and multiple manufacturing cycles.
- Suitable for Hardened Materials: Since EDM removes material through controlled electrical discharge rather than conventional cutting force, it can machine electrically conductive hardened materials effectively.
- Efficient Production: A Cost-Effective Panasonic Servo Motor CNC Electrical Discharge Wire Cut EDM Machine can support productive machining while maintaining the accuracy required for demanding industrial applications.
- Controlled Motion: The use of high-precision Panasonic AC servo motors and associated servo systems contributes to responsive axis movement and controlled cutting operations.
- Reduced Manual Dependency: Automated CNC operation enables programmed machining sequences, supporting consistent production and simplified operation.
Applications of Panasonic Servo EDM Machine
As Panasonic Servo EDM Machine Suppliers, Exporters, Dealers and Manufacturers in Pune, we provide precision-oriented EDM equipment for applications requiring controlled cutting, repeatable dimensions, and dependable machining performance.
- Tool Room: Suitable for producing precision tools, punches, inserts, fixtures, dies, and other components used in Tool Room operations.
- Die Industry: Used for manufacturing accurate die profiles, detailed contours, and intricate components required for stamping, forming, and related production processes.
- Mold Industry: Appropriate for producing mould cavities, cores, inserts, and other detailed Mold Industry components from electrically conductive materials.
- Automotive Parts: Supports the machining of automotive tooling, dies, inserts, and specialized Automotive Parts where accurate profiles and consistent dimensions are important.
- Aerospace Components: Useful for machining complex Aerospace Components where controlled cutting, dimensional accuracy, and repeatability are essential.
- Precision Components: Suitable for intricate Precision Components requiring close tolerances, controlled profiles, and consistent surface quality.
- Medical Parts: Can be applied to specialized Medical Parts manufactured from conductive materials where accurate and repeatable machining is required.
- Industrial Tooling: Appropriate for customized tooling, fixtures, machine components, and other industrial parts requiring precise electrical discharge machining.
For manufacturing requirements involving accurate contour cutting and controlled servo operation, a Panasonic Servo Motor Drive High Precision Performance CNC Wire Cut EDM Machin can provide the required combination of precision, stability, and production capability.
Why Choose Us?
- Quality-Focused Solutions: With more than 15 years of experience, we provide dependable CNC and EDM machining solutions selected according to practical requirements related to accuracy, productivity, application suitability, and long-term industrial use.
- Technical Expertise and Support: We support customers throughout machine selection, application evaluation, installation assistance, operating guidance, and after-sales technical service.
- Value-Based Pricing: Our approach is focused on supplying capable machining equipment at competitive prices while ensuring that the selected configuration matches the customer's production volume, application, quality expectations, and machining objectives.
- Application-Oriented Approach: We understand that every manufacturing requirement is different. Therefore, we help customers evaluate suitable machine configurations based on component geometry, material, production requirements, accuracy expectations, and operational needs.
Unique Machineries Pvt. Ltd. is prominent Panasonic Servo EDM Machine Manufacturers, Suppliers, Dealers and Exporters in Pune. We deliver precision-oriented CNC and EDM solutions for industries requiring accuracy, efficiency, productivity, and reliable technical support. Our Panasonic Servo EDM Machine solutions are designed for intricate wire-cutting and precision machining applications. We assist customers in choosing suitable machine configurations according to their applications, production requirements, quality standards, and long-term machining objectives. Contact us today to learn more about our Precision Panasonic EDM Machine solutions.
FAQ’s
A Panasonic Servo EDM Machine is a CNC electrical discharge machining system using servo-controlled movement for precise wire cutting. It is used to produce complex profiles in electrically conductive materials with controlled and repeatable machining.
The machine removes conductive material through controlled electrical sparks between the wire electrode and workpiece. CNC and servo systems control the wire path and axis movement according to the programmed component profile.
Servo technology provides controlled axis movement, accurate positioning, responsive motion, and repeatable machining performance. These advantages are valuable for complex profiles, precision tooling, and production components.
It can machine electrically conductive materials such as hardened steel, tool steel, carbide, copper, brass, and suitable conductive alloys. The actual material capability depends on the machine configuration, wire, workpiece thickness, and machining parameters.
The achievable accuracy depends on machine construction, CNC control, servo calibration, thermal conditions, wire system, and machining parameters. For precise applications, the machine should be selected and validated according to the required tolerance and surface-finish specifications.
